GT Notch Inserts

VEE BASED TOOLHOLDERS
Example GT Notch Insert
VBE External
All Grades & Materials
All Sizes

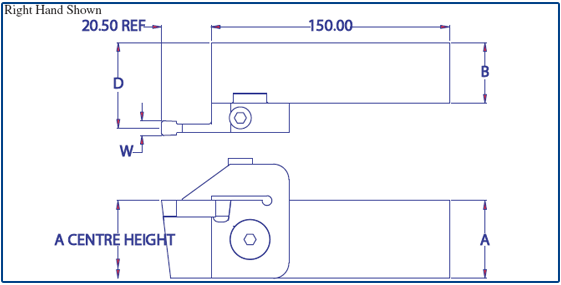

GT Notch CAD Drawing

Insert
Dimensions

Blade & Clamp
W (min)
W (max)
A
B
C
D
Order Reference
.125
(3.18)
.156
(397)
25
25
40
35.60

SBC 125/126
R/L
32
25
47
35.60
.157
(3.98)
.218
(5.56)
25
25
40
35.20
SBC 125/126
R/L
32
25
47
35.20
.219
(5.57)
.250
(6.35)
25
25
40
35.20
SBC 125/126
R/L
32
25
47
35.20
.251
(6.36)
.312
(7.94)
25
25
40
34.50
SBC 125/126
R/L
32
25
47
34.50
.313
(7.95)
.375
(9.52)
25
25
40
33.50
SBC 125/126
R/L
32
25
40
33.50

1. Standard 010xM8x16LG Shoulder screw for support blade.
2. Clamp screw STC-11
3. Support blade can be used with either 2525 or 3225 shanks.
4. Blade & clamp are supplied as one unit - set up DIM = D+1/2 insert width.
5. Add FNR to support blade reference when ordering inserts with full nose radius.



Example GT Notch Insert
VBI Internal
All Grades & Materials
All Sizes

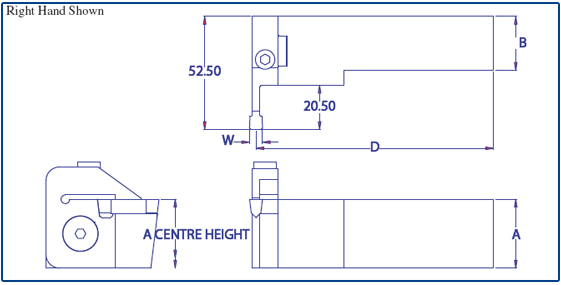

GT Notch CAD Drawing

Insert
Dimensions

Blade & Clamp
W (min)
W (max)
A
B
C
D
Order Reference
.125
(3.18)
.156
(397)
25
25
40
35.60

SBC 125/126
R/L
32
25
47
35.60
.157
(3.98)
.218
(5.56)
25
25
40
35.20
SBC 125/126
R/L
32
25
47
35.20
.219
(5.57)
.250
(6.35)
25
25
40
35.20
SBC 125/126
R/L
32
25
47
35.20
.251
(6.36)
.312
(7.94)
25
25
40
34.50
SBC 125/126
R/L
32
25
47
34.50
.313
(7.95)
.375
(9.52)
25
25
40
33.50
SBC 125/126
R/L
32
25
40
33.50
