GT Notch Inserts

VEE BASED INSERTS
Example GT Notch Insert
DBV Grooving Inserts
All Grades & Materials
All Sizes
Neutral & Positive Cutting

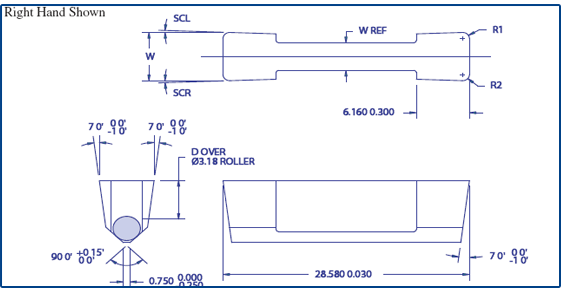

GT Notch CAD Drawing

INSERT ORDER
REFERENCE
W

B
W REF
R
DBV-125
.125 (3.18)
2.51
2.41
0.40
DBV-156
.1562 (3.97)
2.51
2.69
0.40
DBV-187
.1875 (4.76)
2.51
3.66
0.79
DBV218
.2188 (5.56)
2.51
3.66
0.79
DBV-250
.250 (6.35)
4.72
3.66
0.79
DBV-312
.3125 (7.94)
4.72
5.13
0.79
DBV-375
.375 (9.52)
4.72
7.01
0.79

Precision Ground Insert:
Insert tolerance on widths and radii +/- 0.025
Standard widths shown. Widths & radii to suit customer requirements.



Example GT Notch Insert
FNR Grooving Inserts
All Grades & Materials
All Sizes
Neutral & Positive Cutting

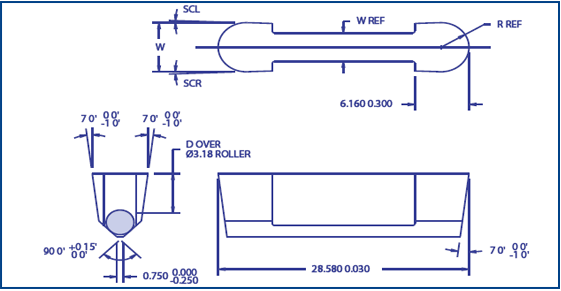

GT Notch CAD Drawing

INSERT ORDER
REFERENCE
W

B
W REF
R
DBV-125
.125 (3.18)
2.51
2.41
1.59
DBV-156
.1562 (3.97)
2.51
2.69
1.98
DBV-187
.1875 (4.76)
2.51
3.66
2.38
DBV218
.2188 (5.56)
2.51
3.66
2.78
DBV-250
.250 (6.35)
4.72
3.66
3.18
DBV-312
.3125 (7.94)
4.72
5.13
3.97
DBV-375
.375 (9.52)
4.72
7.01
4.76

Precision Ground Insert:
Insert tolerance on widths and radii +/- 0.025
Standard widths shown. Widths & radii to suit customer requirements.
