TRIANGULAR INSERTS

		Grooving FNR
		All Grades & Materials
		All Sizes
		Neutral & Positive Cutting

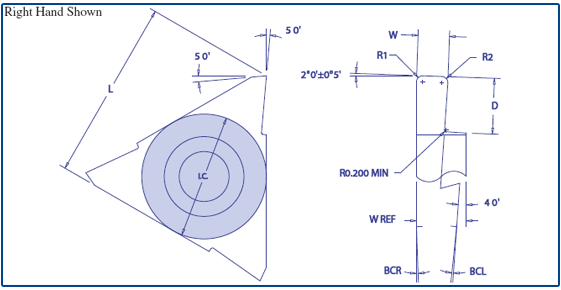

GT Notch CAD Drawing

INSERT ORDER REFERENCE	I.C.	HOLE SIZE	W REF	D	W (MAX)
TNMC-43-R/L-2°	12.7	5.1	4.76	5.0	4.76
TNMC-54-R/L-2°	15.9	6.4	6.35	7.0	6.35
TNMC-64-R/L-2°	19.05	8.0	6.35	9.6	6.35
TNMC-66-R/L-2°	19.05	8.0	9.52	9.6	9.52

Precision Ground Insert:
Insert widths to tolerance +/- 0.025. Specify ‘R’ or ‘L’ for Right or Left.
W and R must be specified when ordering. Example: TNMC 43NGL - 2 W=3.5 R=0.5
Note: TNMC - Hole with countersink both sides.
