GT NOTCH TOOLHOLDERS

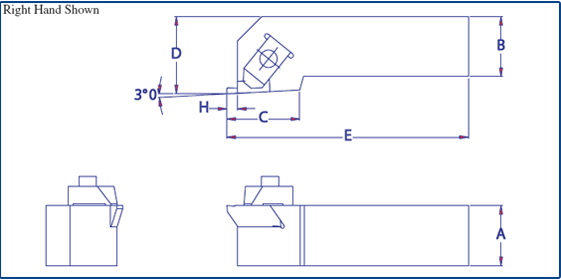

		GNS External
		All Grades & Materials
		All Sizes
		GN Threading & Grooving

HOLDER ORDER REFERENCE	A	B	C	D	E	H	RH CLAMP	LH CLAMP	INSERT
GNS 2525-2R/L	25	25	19	32	127	3.18	CM74	CM75	GNN/P-2
GNS 2525-3R/L	25	25	32	32	150	4.57	CM72	CM73	GNN/P-3
GNS 3225-3R/L	32	32	32	32	150	4.57	CM72	CM73	GNN/P-3
GNS 2525-4R/L	25	25	35	32	150	7.11	CM72	CM73	GNN/P-4
GNS 3225-4R/L	32	32	35	32	150	7.11	CM72	CM73	GNN/P-4
GNS 3232-5R/L	32	32	51	40	150	10.00	CM80	CM81	GNN/P-5

Right hand holder uses right hand inserts & clamps.
Left hand holder uses left hand inserts & clamps.

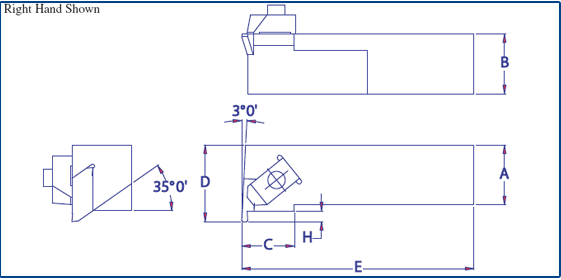

		GNS Internal
		All Grades & Materials
		All Sizes
		GN Threading & Grooving

HOLDER ORDER REFERENCE	A	B	C	D	E	H	RH CLAMP	LH CLAMP	INSERT
GNS 2525-2R/L	25	25	19	32	127	3.18	CM74	CM75	GNN/P-2
GNS 2525-3R/L	25	25	32	32	150	4.57	CM72	CM73	GNN/P-3
GNS 3225-3R/L	32	32	32	32	150	4.57	CM72	CM73	GNN/P-3
GNS 2525-4R/L	25	25	35	32	150	7.11	CM72	CM73	GNN/P-4
GNS 3225-4R/L	32	32	35	32	150	7.11	CM72	CM73	GNN/P-4
GNS 3232-5R/L	32	32	51	40	150	10.00	CM80	CM81	GNN/P-5

Right hand holder uses left hand inserts & clamps.
Left hand holder uses right hand inserts & clamps.
