GT Notch Inserts

GT NOTCH INSERTS
Example GT Notch Insert
All Grades & Materials
All Sizes
Grooving FNR
Neutral & Positive Cutting

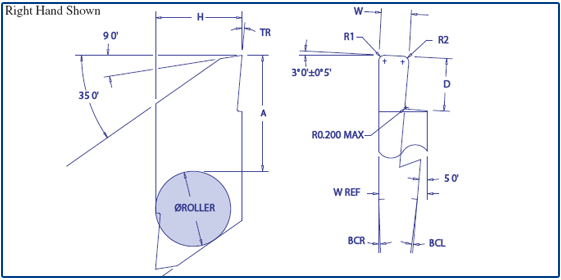

GT Notch CAD Drawing

INSERT ORDER
REFERENCE
W
(MAX)

W REF
D
A
H
D0
GN N/P 2 R/L
3.18
3.81
1.27
6.51
5.56
5.00
GN N/P 3 R/L
4.80
4.95
3.81
9.59
8.74
10.00
GN N/P 4 R/L
6.38
6.48
6.35
15.46
11.51
10.00
GN N/P 5 R/L
9.52
9.65
9.52
25.20
17.48
12.00

Precision Ground Insert:
Insert Width 'W' to tolerance +/- 0.025
R/L. W and R must be specified when ordering.
Order example : GNN 3 R W=4.00 R=1.00

View GT Notch Sample Images...

View GT Notch Toolholders...

View our Catalogue...

Contact Gilmour Tools...
